Differences between whole-brain and masked ALFF values

Hi,

Summary of what happened:

Large differences between ALFF values in the hippocampus obtained from a CIFTI output (hippocampal ALFF values still in volumetric space) and the ones obtained from the NIFTI whole brain output.

Setup:

  • Data: ABCD dataset, downloaded with Datalad.
  • Container: Singularity container for XCP-D.
  • Version: XCP-D v0.10.0rc3

Description of the problem

A colleague ran the XCP-D pipeline with the CIFTI output. As we decided to share the resources, I extracted the volumetric hippocampal ALFF values from

*space-fsLR_den-91k_stat-alff_boldmap.dscalar.nii

with the command

wb_command -cifti-separate sub-XXX_ses-baselineYear1Arm1_task-rest_run-02_space-fsLR_den-91k_stat-alff_boldmap.dscalar.nii COLUMN -volume HIPPOCAMPUS_LEFT hippocampus_L.nii.gz

However, due to misalignment with the current hippocampal surface that I have (after adjusting for resolution and space), we decided to re-run the pipeline but this time to get the volumetric ALFF values for the whole brain. To our surprise, the ALFF values (in blue in Fig.1) of the hippocampus were much lower than the ones obtained with the hippocampal mask (in orange).


Fig. 1

We were wondering if the calculations may change depending on the output format, especially when considering allocortical and subcortical structures. The hippocampus mask extracted from the CIFTI file seems to be in the right place when plotted on the whole brain ALFF NIFTI file.

Excerpt of my colleague’s code:

# Apply transformation if output mask does not already exist
            if [ ! -f "$output_mask" ]; then
                echo "Applying transformation..."
                antsApplyTransforms -d 3 -i "$mask_file" -r "$tpl_file" -n NearestNeighbor \
                    -t "$transform_file" -o "$output_mask" || {
                    echo "Error applying transformation for $mask_file"
                    missing_files_errors+=("$sub: Error applying transformation for $mask_file")
                    continue
                }
                echo "Transformation applied successfully!"
            else
                echo "Mask transformation output already exists for $mask_file"
            fi

            # Check if required BOLD data exists in fsLR space
            fsLR_bold_files=$(find "$subject_dir/ses-baselineYear1Arm1/func/" -name "*_space-fsLR_den-91k_bold.dtseries.nii" 2>/dev/null)
            if [ -z "$fsLR_bold_files" ]; then
                echo "No BOLD data found in fsLR space for $sub. Skipping XCP-D processing."
                missing_files_errors+=("$sub: No BOLD data in fsLR space")
            else
            	# Run XCP-D post-processing pipeline
            	echo "Running XCP-D pipeline"

            	singularity run \
            	-B /data/ABCD:/data/ABCD \
            	--cleanenv /data/xcp_d-0.10.1.sif \
            	/data/ABCD/ABCD_fMRIprep/fmriprep \
            	/data/ABCD/XCP-D_output \
            	participant \
            	--mode 'none' \
            	--participant-label "${sub#sub-}" \
            	--bids-filter-file /data/ABCD/bids_filter_file.json \
            	--nprocs 36 \
            	--input-type 'fmriprep' \
            	--file-format 'cifti' \
            	--dummy-scans 'auto' \
            	--despike 'y' \
            	--nuisance-regressors /data/ABCD/custom_confounds_24P_csf_wm.yaml \
            	--fd-thresh 0.3 \
            	--output-type 'censored' \
            	--combine-runs 'n' \
            	--smoothing 6 \
            	--motion-filter-type 'none' \
            	--head-radius 50 \
            	--lower-bpf 0.01 \
            	--upper-bpf 0.08 \
            	--bpf-order 2 \
            	--min-time 240 \
            	--atlases '4S456Parcels' \
            	--min-coverage 0.5 \
            	--create-matrices 240 all \
            	--work-dir /data/ABCD/work \
            	--warp-surfaces-native2std 'n' \
            	--abcc-qc 'n' \
            	--linc-qc 'y' \

where
mask_file = {sub}_ses-baselineYear1Arm1"*desc-brain_mask.nii.gz;
transform_file = {sub}_ses-baselineYear1Arm1"*from-T1w_to-MNI152NLin6Asym_mode-image_xfm.h5
output_mask = {sub}_ses-baselineYear1Arm1_space-MNI152NLin6Asym_desc-brain_mask.nii.gz
tpl_file = /data/tpl-MNI152NLin6Asym/tpl-MNI152NLin6Asym_res-01_T1w.nii.gz

Excerpt of my code with alterations to return whole-brain volumetric ALFF values:

output_mask="${sub}_ses-baselineYear1Arm1_space-MNI152NLin6Asym_desc-brain_mask.nii.gz"
            tpl_file="/data/pt_02983/data/ALFF/test/test2/tpl-MNI152NLin6Asym/tpl-MNI152NLin6Asym_res-02_T1w.nii.gz"

            # pull ants container if needed
            if [ ! -f /data/software/containers/ants_2.5.3.sif ]; then
                echo "Pulling ANTs container..."
                mkdir -p /data/software/containers
                singularity pull /data/software/containers/ants_2.5.3.sif docker://antsx/ants:2.5.3
            fi

                echo "Running antsApplyTransforms for anatomical brain mask..."
                singularity exec \
                    --cleanenv \
                    -B /data:/data \
                    /data/software/containers/ants_2.5.3.sif \
                    antsApplyTransforms -d 3 -v 1 \
                    -i "$mask_file" \
                    -r "$tpl_file" \
                    -n NearestNeighbor \
                    -t "$transform_file" \
                    -o "$output_mask" || {
                        echo "Error applying transformation for $mask_file"
                        continue
                    }
                echo "Transformation applied successfully!"

            # now handle the functional files
            cd ../func/ || {
                echo "Missing functional directory for $sub"
                missing_files_errors+=("$sub: Missing functional directory")
                continue
            }

            for bold_file in *task-rest_run-*_space-MNI152NLin6Asym_desc-smoothAROMAnonaggr_bold.nii.gz; do
                bold_file=$(echo "$bold_file" | sed 's/"//g;s/@$//')

                if [ -f "$bold_file" ]; then
                    symlink_file="${bold_file/_desc-smoothAROMAnonaggr/_desc-preproc}"
                    if [ ! -f "$symlink_file" ]; then
                        ln -s "$bold_file" "$symlink_file"
                    fi

                    boldref_file="${bold_file/_desc-smoothAROMAnonaggr_bold/_boldref}"
                    if [ ! -f "$boldref_file" ]; then
                        fslroi "$bold_file" "$boldref_file" 0 1
                    fi

                    # extract run id
                    run=$(echo "$bold_file" | grep -o "run-[0-9][0-9]")

                    # define run-specific anatomical mask symlink name
                    anatomical_mask_run="${sub}_ses-baselineYear1Arm1_task-rest_${run}_space-MNI152NLin6Asym_desc-brain_mask.nii.gz"

                    if [ ! -f "$anatomical_mask_run" ]; then
                        ln -s "$(realpath ../anat/${output_mask})" "$anatomical_mask_run"
                        echo "Created run-specific mask: $anatomical_mask_run"
                    fi
                fi
            done

            # Run XCP-D post-processing pipeline
            echo "Running XCP-D pipeline"

            singularity run \
            -B /data/:/data \
            --cleanenv /data/xcp_d-0.10.0rc3.simg \
            /data/ABCD/ABCD_fMRIprep/fmriprep \
            /data/ALFF/test/test2/XCP-D_output/ \
            participant \
            --mode 'none' \
            --participant-label "${sub#sub-}" \
            --bids-filter-file /data/ALFF/test/test2/bids_filter_file.json \
            --nprocs 36 \
            --input-type 'fmriprep' \
            --file-format 'nifti' \
            --dummy-scans 'auto' \
            --despike 'y' \
            --nuisance-regressors /data/ALFF/test/test2/custom_confounds_24P_csf_wm.yaml \
            --fd-thresh 0.3 \
            --output-type 'censored' \
            --combine-runs 'n' \
            --smoothing 6 \
            --motion-filter-type 'none' \
            --head-radius 50 \
            --lower-bpf 0.01 \
            --upper-bpf 0.08 \
            --bpf-order 2 \
            --min-time 240 \
            --skip-parcellation \
            --create-matrices 240 all \
            --work-dir /data/ALFF/test/test2/work \
            --warp-surfaces-native2std 'n' \
            --abcc-qc 'n' \
            --linc-qc 'y' \

Thank you very much in advance! (:

Best,
Mylla

There should be no differences in how ALFF is calculated for CIFTIs and NIfTIs. I will try to reproduce this in my own data in the next few days, but I think something upstream of the ALFF calculation must be the cause.

1 Like

Hi Taylor,

Any update on this?

Thanks in advance!

Best,
Mylla

Sorry, I haven’t had a chance to look into this yet. One question- have you compared the ALFF TSV files from your NIfTI and CIFTI runs?

No worries at all — absolutely no pressure, and thank you for getting back to me! :see_no_evil:

No, I do not have TSV files for the NIfTI-based pipeline, as I did not parcellate the brain.
The ALFF output I’m working with is this file:

sub-XXX_ses-baselineYear1Arm1_task-rest_run-XX_space-MNI152NLin6Asym_stat-alff_boldmap.nii.gz

I already have a hippocampal surface transformed into MNI 2mm to match the resolution and coordinates of the ALFF values. Then I can extract the values for the hippocampus with it.

For my colleague’s approach, with the CIFTI runs, we decided to use the dense format:

sub-XXX_ses-baselineYear1Arm1_task-rest_run-XX_space-fsLR_den-91k_stat-alff_boldmap.dscalar.nii

So no TSV files there either. It is from this file that I extracted the hippocampus values with

wb_command -cifti-separate sub-XXX_ses-baselineYear1Arm1_task-rest_run-XX_space-fsLR_den-91k_stat-alff_boldmap.dscalar.nii COLUMN -volume HIPPOCAMPUS_LEFT hippocampus_L.nii.gz

I only have one TSV file from a parcellated version (4S456Parcels):

sub-XXX_ses-baselineYear1Arm1_task-rest_run-02_space-fsLR_seg-4S456Parcels_stat-alff_bold.tsv

In this file, the LH hippocampus is 1.505, and the RH one is 1.623.

Hope this helps! If you need more information, please let me know.

Thanks again!

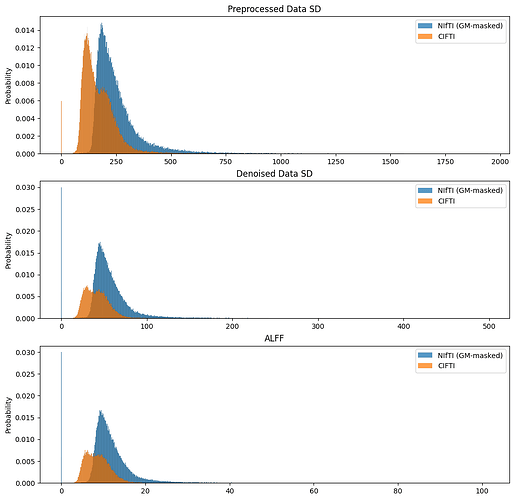

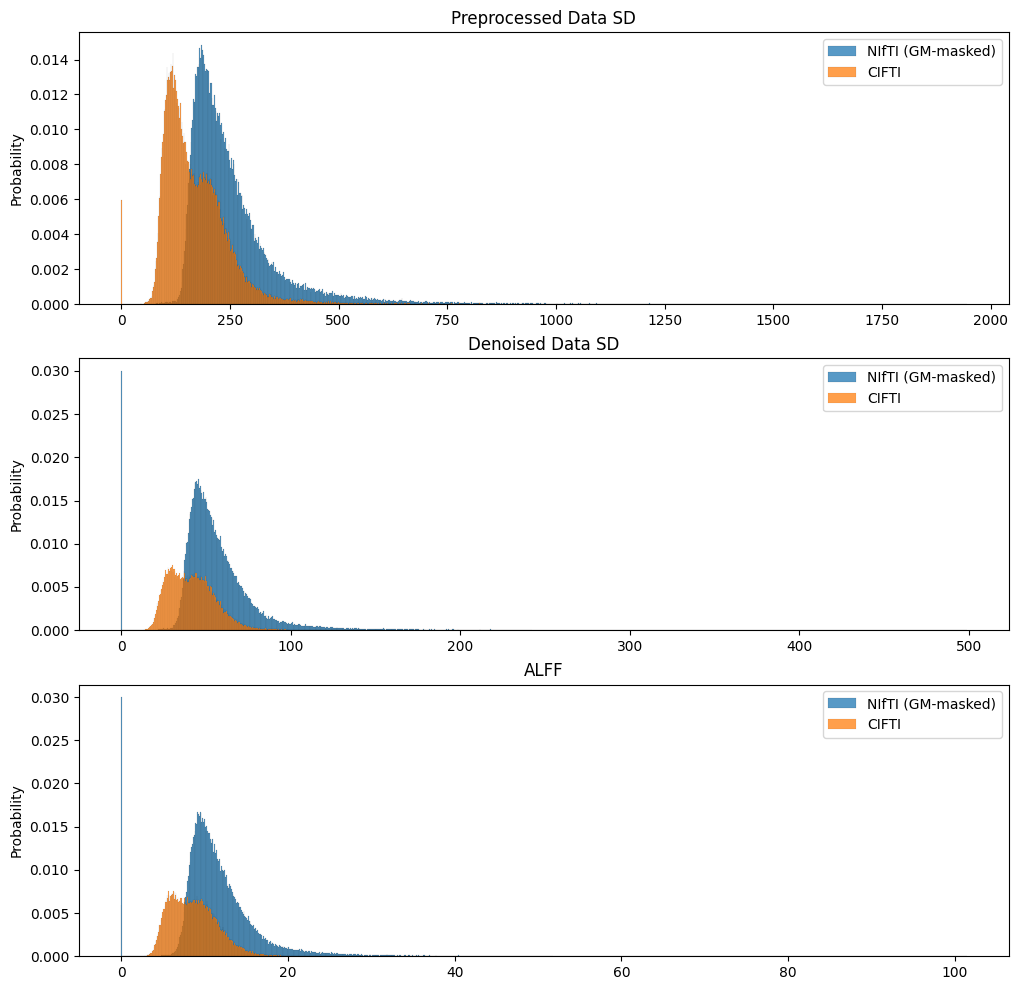

I had a chance to look at ALFF in some data. I preprocessed one session from 28andHe with fMRIPrep and then ran XCP-D in NIfTI mode and CIFTI mode. Then I masked the NIfTI data with the gray matter tissue type mask in the dseg file produced by fMRIPrep and compare the distributions of three sets of values: (1) the standard deviation over time of the preprocessed fMRI data produced by fMRIPrep, (2) the standard deviation over time of the denoised data produced by XCP-D, and (3) the ALFF values produced by XCP-D.

While I didn’t look specifically at hippocampus, I think the results indicate that the differences stem from the preprocessed data, not anything XCP-D is doing. See, the distributions of SD values are different between the CIFTI and NIfTI data coming from fMRIPrep. It’s not an apples-to-apples comparison, because I used the full CIFTI data and the gray matter masked NIfTI data, but I think the result is still fairly compelling. The same basic pattern continues for the denoised data and the ALFF data. The denoised data and ALFF data are correlated around 0.997 for both CIFTI and NIfTI, so XCP-D’s ALFF calculation isn’t specifically introducing any bias.

1 Like

Ahh, really interesting! :dizzy_face:

Thanks so much for running the comparisons and for all the help, Taylor!
I hadn’t realized how much the variance structure is shaped by the preprocessing process itself, but it’s also reassuring to see a high correlation between the ALFF outputs.

This is super insightful!
Thanks a lot again for digging into it!

1 Like
