Micapipe dMRI processing fails for some subjects, dwifslpreproc and libcudart.so.9.1 issue

[TJS]

Summary of what happened:

I’m running micapipe 0.2.3 on Rocky Linux 8.10 to process structural and diffusion MRI data. The structural data was processed with no issues and the output looked fine. The dMRI processing worked for some subjects but failed for others, apparently because dwifslpreproc failed because libcudart.so.9.1 cannot be found for these subjects.
There is no difference in the acquisitions, the only difference is that since I’m running this on an HPC, each subject is processed on a different CPU node. The odd thing is that when I rerun the structural processing for these subjects, and then rerun the dMRI processing, it often works fine. I’d like to get to the bottom of this because I can’t keep rerunning half the subjects all the time, does anyone have an idea what I could check?

Command used (and if a helper script was used, a link to the helper script or the command generated):

singularity run --writable-tmpfs --containall \
 -B /rds/project/rds-nCu8GHKxWRw/data/micapipe:/rds/project/rds-nCu8GHKxWRw/data/micapipe \
 -B ${bids_dir}:${bids_dir} \
 -B ${out_dir}:${out_dir} \
 -B ${temp_dir}:${temp_dir} \
 -B /rds/project/rds-nCu8GHKxWRw/data/micapipe/work_dir:/tmp \
 -B /rds/project/rds-nCu8GHKxWRw/data/micapipe/dwifslpreproc:/opt/miniconda-22.11.1/envs/micapipe/bin/dwifslpreproc \
 -B /rds/project/rds-nCu8GHKxWRw/data/micapipe/work_dir/.mrtrix.conf:/etc/mrtrix.conf \
 -B /usr/local/software/spack/spack-git/opt/spack/linux-rhel7-broadwell/gcc-5/ants-2.3.4-lj6vm7ccmij4yywr4ynrttcko4aoflqt/bin:/opt/ants-2.3.4 \
 -B /rds/project/rds-nCu8GHKxWRw/data/micapipe/license.txt:/opt/freesurfer-7.3.2/license.txt \
/rds/project/rds-nCu8GHKxWRw/data/micapipe/micapipe-v0.2.3.simg \
-bids ${bids_dir} \
-sub ${subj} \
-out ${out_dir} \
-ses ${session} \
-tmpDir /rds/project/rds-nCu8GHKxWRw/data/micapipe/work_dir/${subj}_${session} \
-fs_licence /opt/freesurfer-7.3.2/license.txt \
-proc_dwi -rpe_all \

Version:

<micapipe 0.2.3>

Environment (Docker, Singularity / Apptainer, custom installation):

Data formatted according to a validatable standard? Please provide the output of the validator:

PASTE VALIDATOR OUTPUT HERE

Relevant log outputs (up to 20 lines):

               ============
               eddy_cuda9.1
               ============
               eddy_cuda9.1: error while loading shared libraries: libcudart.so.9.1: cannot open shared object file: No such file or directory

               ===========
               eddy_openmp

dwifslpreproc:
dwifslpreproc: [ERROR] For debugging, inspect contents of scratch directory: /rds/project/rds-nCu8GHKxWRw/data/micapipe/work_dir/sub-CISC39120_ses-20260810/4150_micapipe_proc-dwi_CISC39120/dwifslpreproc-tmp-SF6LWV/
dwifslpreproc: Scratch directory retained; location: /rds/project/rds-nCu8GHKxWRw/data/micapipe/work_dir/sub-CISC39120_ses-20260810/4150_micapipe_proc-dwi_CISC39120/dwifslpreproc-tmp-SF6LWV/

-------------------------------------------------------------
[ ERROR ]..... dwifslpreproc failed, check the logs

Screenshots / relevant information:

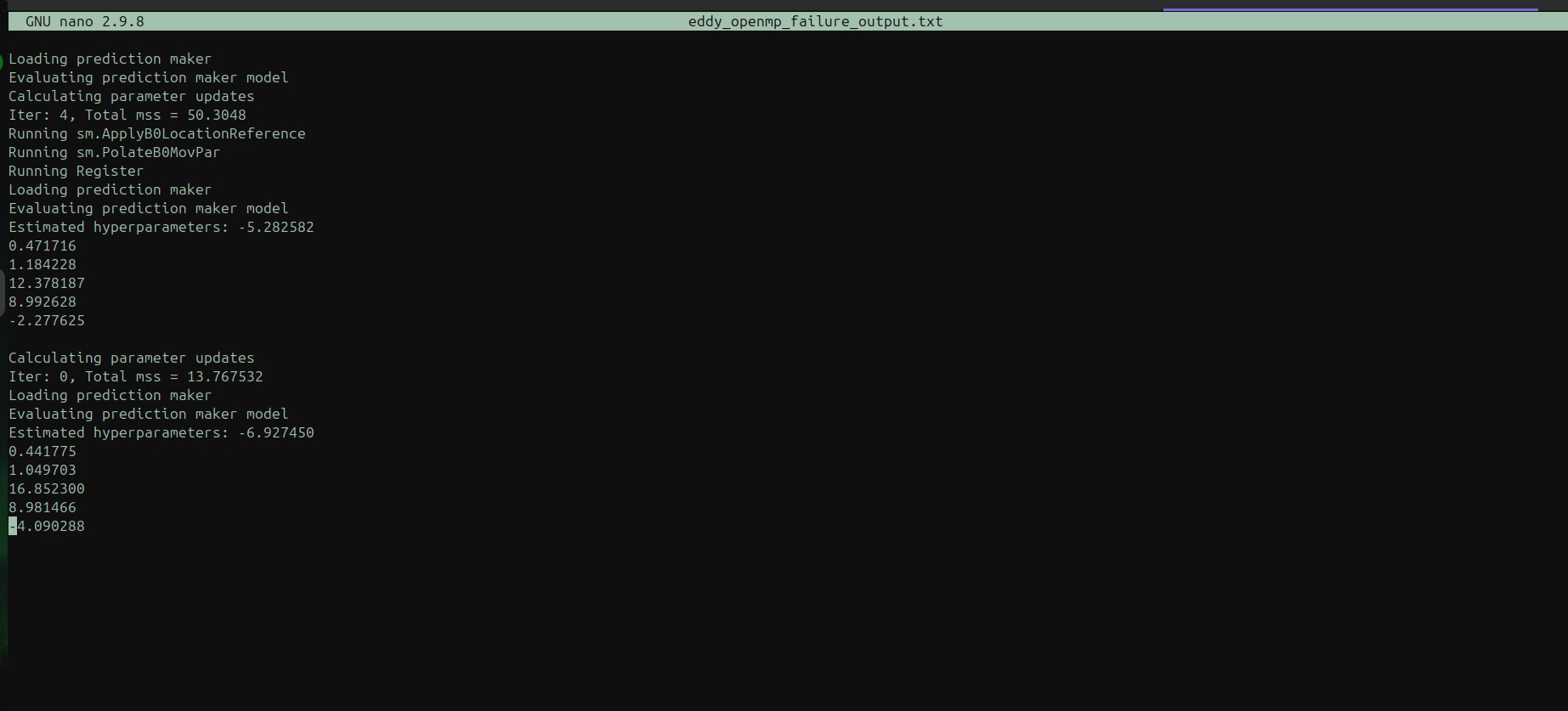

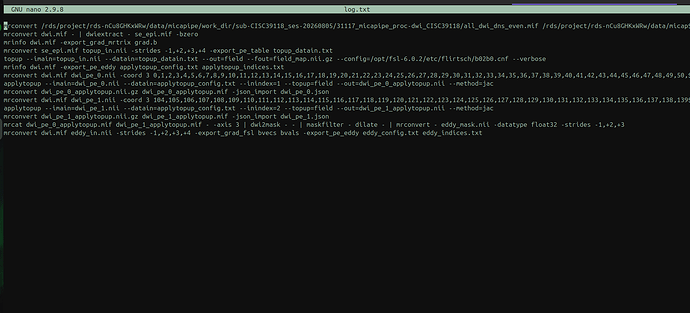

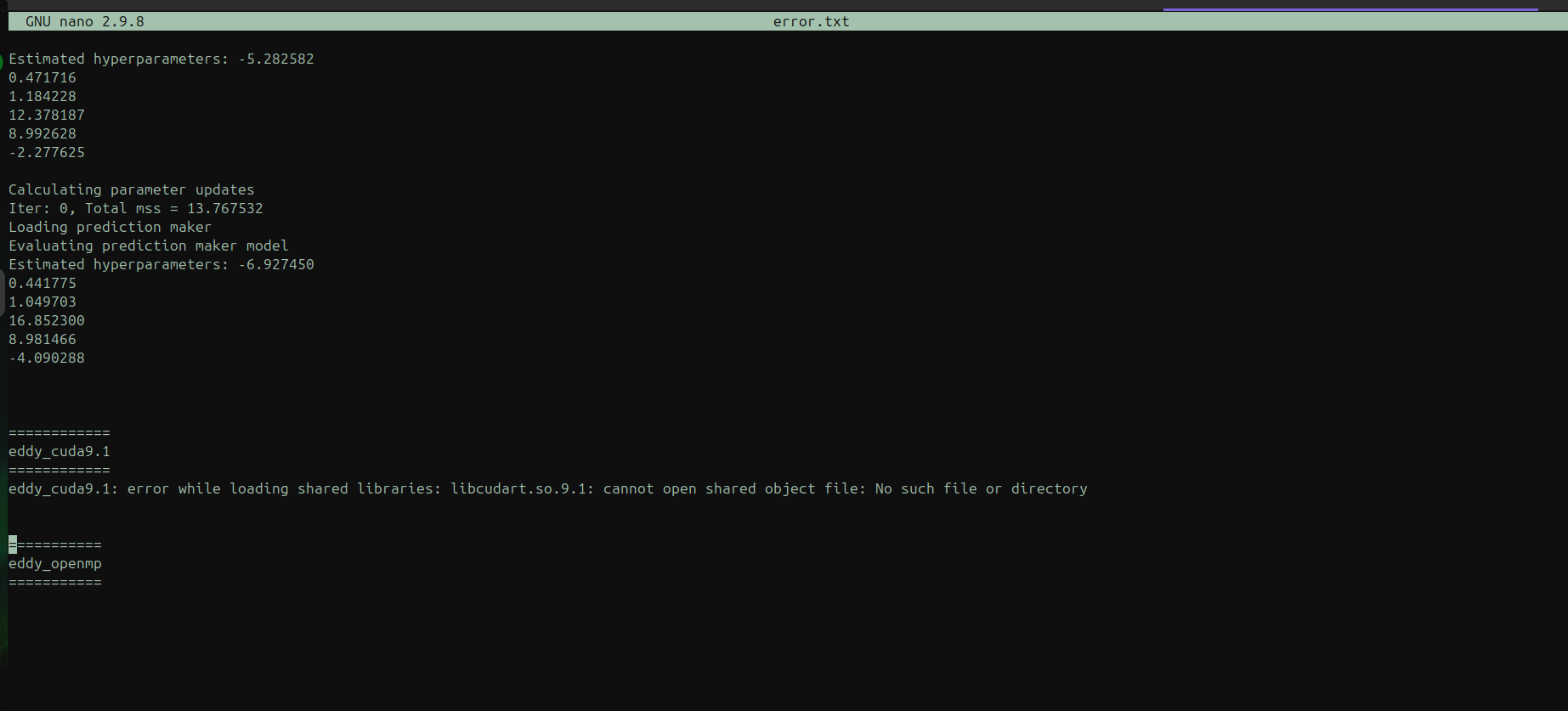

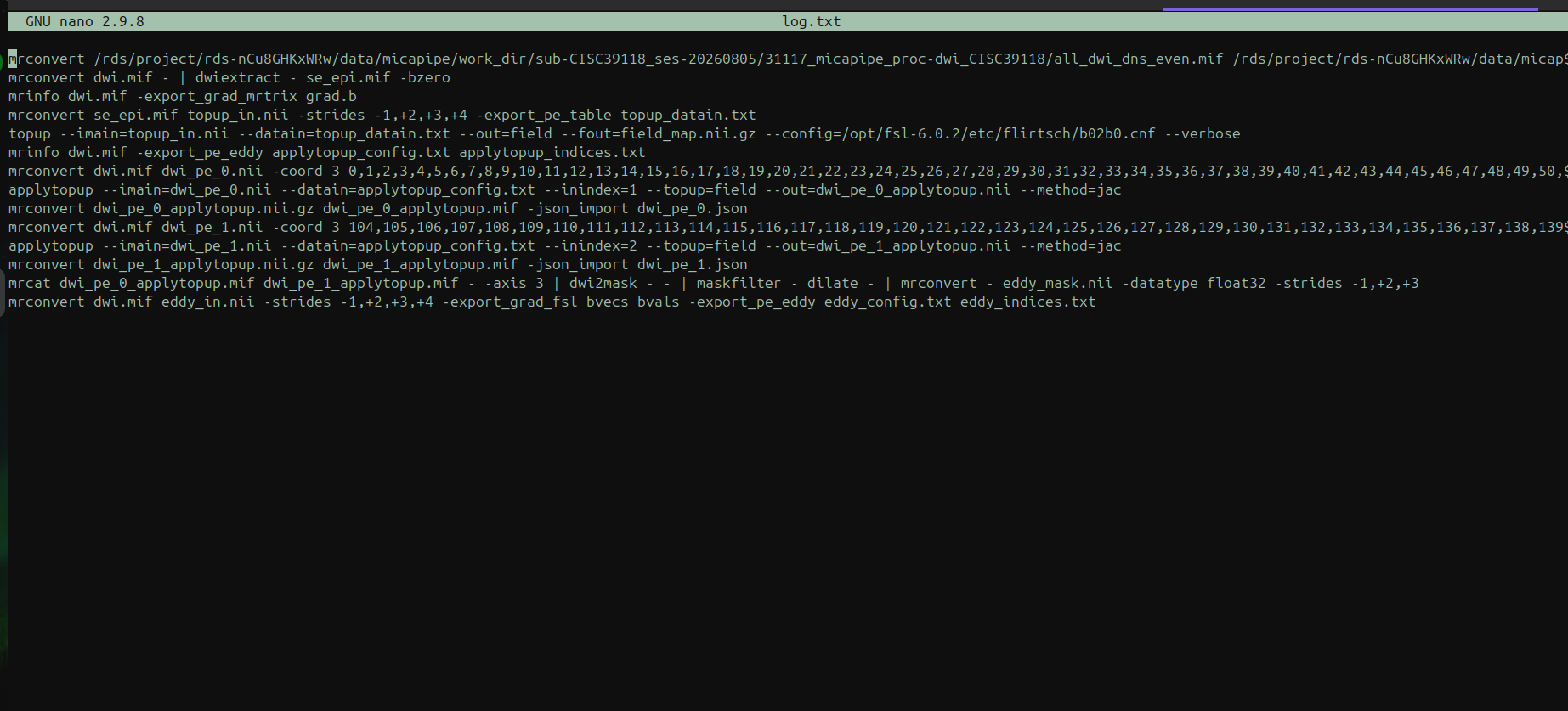

Attached: Outputs from retained scratch directory (log.txt, error.txt, eddy_openmp_error_output.txt)

---

[TJS]

Forgot to mention: It doesn’t seem to be a node environment issue because one the same given CPU node, some runs are successful and others are not. Equally, any given subject is sometimes processed successfully, other times not.

[gregvectle]

same node, same subject, sometimes works: that rules out the node and the data, and points at the job environment differing between submissions. on hpc that usually means the module system, some jobs inherit cuda library paths and some dont, or the bind mounts resolve differently per job.

id log the environment in every job before the singularity call: loaded modules, cuda-related env vars, and whether libcudart.so.9.1 is findable, then diff a failed job against a successful one. my bet is youll find the difference there.

longer term, make the eddy choice deterministic instead of probed: either force the cpu eddy build on cpu nodes or bind-mount a matching cuda 9.1 lib dir into every job identically. deterministic and slow beats fast and flaky.

wrote the full diagnostic up as a skill: https://vectle.com/skills/skl_b0-MX_BsVil5d7u-pH8KjA

[TJS]

That’s helpful thank you, I’ll give that a go! I thought the singularity image would have ensured that the environment is always the same, but it must be an issue with that as nothing else makes sense. The other thing that confused me is why the eddy_openmp fallback option is successful sometimes but not always, because I thought that wouldn’t need any specific module other than what is already in the singularity image.

Thank you for the link, I’ll try it out!
